MP Case History

Vent Valve Steam Leak

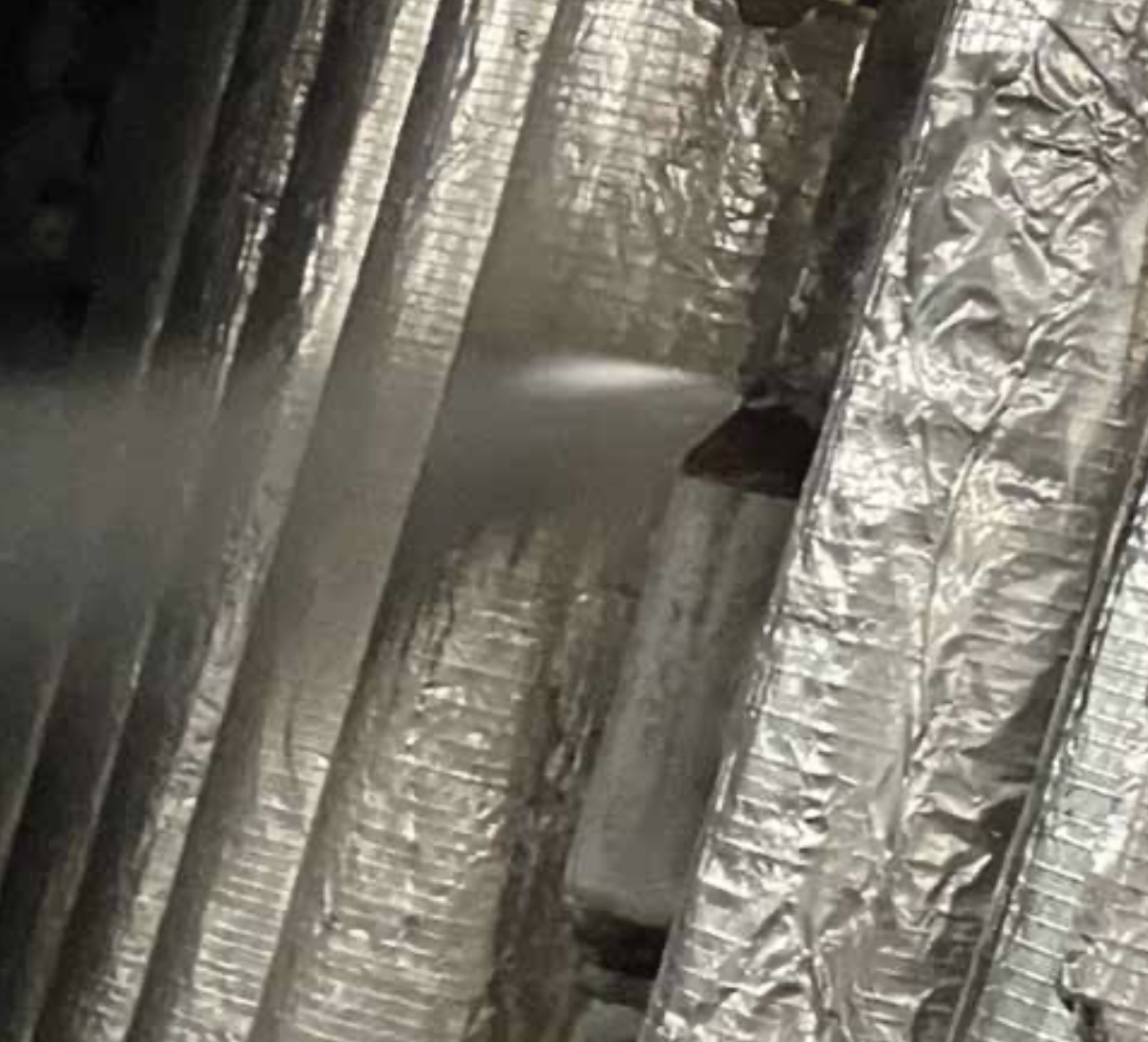

The 0.8” line had suffered from a leak and the client required Metalyte Pipeworks to provide a bespoke Vulcan clamp enclosure solution

Metalyte Pipeworks Vulcan clamp enclosure with strongbacks was engineered as per ASME SEC VIII.

Manufactured and installed Vulcan clamp enclosure.

The 0.8” line had suffered from a leak

The bellow had suffered from a leak

The 4” flange had suffered from a leak

The 3” line had suffered from a leak

The 3” flange had suffered from a joint break on shutdown and the gasket could not be replaced

The 24” line had suffered from external corrosion at different points on the pipeline which was repaired with composites
